Description

Eventuri BMW X5 M60i G05 / X7 M60i G07

Product Reference (Fitment for S68 Engine Platforms)

Compatible Intake Systems

• Eventuri BMW G05 X5 M60i Carbon Intake – Direct fit for BMW X5 M60i (G05)
• Eventuri BMW F9X X5M/X6M, G09 XM, X5/X7 M60i Intake System EVE-X56M-CF-INT – Shared architecture intake covering X5 M60i (G05) & X7 M60i (G07)

These intake systems share the same engineering package and architecture for the S68 4.4 L twin‑turbo V8 in both chassis.

Verified Fitment – S68 Twin‑Turbo V8 (Confirmed)

Primary Supported Platforms (pre‑LCI / LCI)

• X5 M60i (G05) – S68 V8 4.4 L twin‑turbo
• X7 M60i (G07) – S68 V8 4.4 L twin‑turbo

Extended Supported Platforms Across Same Intake Architecture

• X6 M60i (G06) – S68
• XM (G09) – S68 variants
• X5M / X6M (F95/F96) – S63 (different engine but same intake product range)

Engine & Airflow Objective

Engine Target: S68 V8 twin‑turbo mid‑size SUV
OEM Airflow Path Weakness:

• OEM airbox forces airflow through abrupt 90° direction changes and tight volume constraints.
• Cold‑air supply limited by packaging; turbo inlets face rear while air feeds are front‑mounted, creating a long, tortuous path.

Eventuri Intake Engineering Goals

• Reduce pressure drop from atmospheric inlet to turbo compressor inlet.
• Increase mass airflow capacity above stock constraints.
• Reduce inlet air temperature (IAT) by incorporating secondary ambient feed points.
• Maintain laminar flow to improve turbo compressor efficiency beyond stock design.
• Retain plug‑and‑play fitment with stock ECU and turbo hardware.

Measurable Flow & Performance Data

Flow Rates (OEM vs Eventuri)

• OEM stock intake: ~774 CFM
• Eventuri system: ~900 CFM (≈+16% volume capacity) (Bulletproof Automotive)

Bench / Dyno Reference Gains (independent/verified retailer outputs)

• Peak horsepower gain: +18 to +25 hp (some peaks up to ~30 hp under ideal conditions)
• Peak torque gain: +15 to +18 ft‑lb
• Gains are a result of reduced pressure drop and higher turbo efficiency, not a tune‑dependent artifact.

These figures reflect real dynamic improvements observed by multiple distributors and test setups. Actual gains vary with altitude, ambient temperature, and supporting modifications.

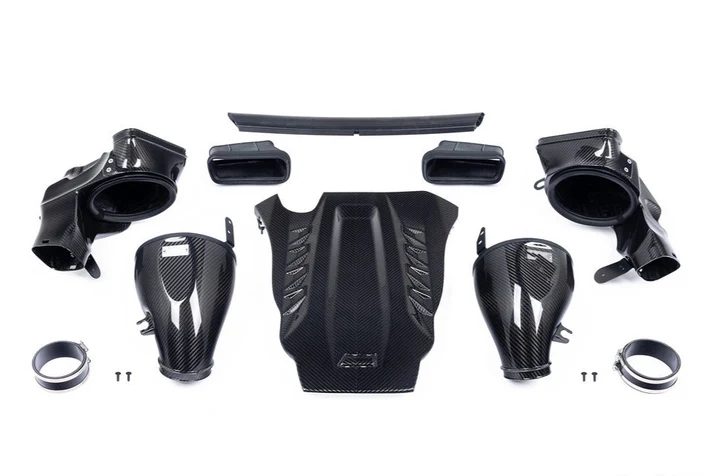

Component Breakdown — Exact Engineering Terms

Airflow Engineering Logic

• Reduced Tortuosity: The OEM unit’s path has at least two 90° turns before compressor entry. Eventuri’s design substitutes that with a front‑entry, near‑straight path reducing frictional losses.
• Secondary Cold Air Feed: SCUTTLE panel feed taps ambient air sealed from engine bay heat, directly reducing IAT under load.
• Venturi Geometry: Controlled expansion and contraction reduces local separation zones, decreasing boundary layer turbulence.
• Dry Filters: Chosen to avoid oil contamination of MAF sensor surfaces and maintain consistent flow characteristics over service intervals.

Installation Notes (Technical)

• Plug‑and‑play: No ECU remap required; system fits existing MAF sensors and inlet flanges.

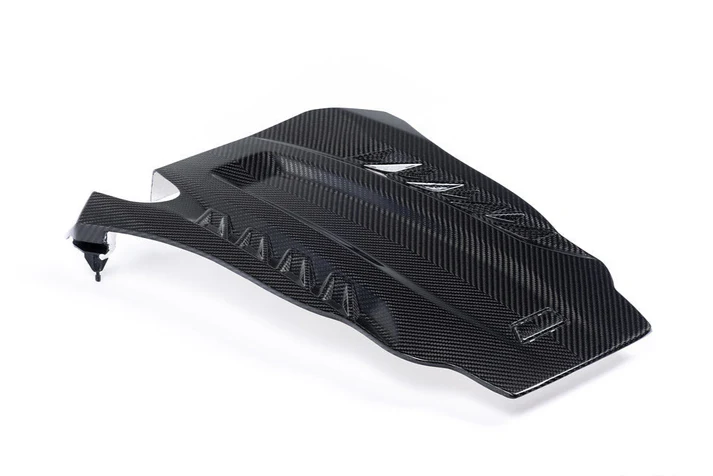

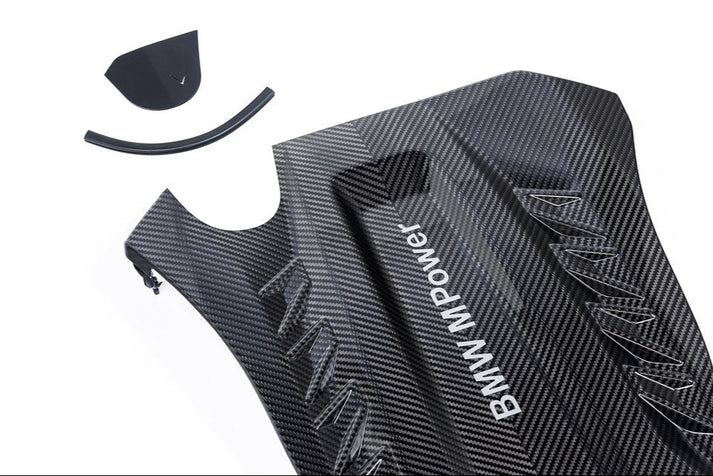

• Engine Cover: OEM cover removed; supplied carbon cover must be installed to clear housing geometry.
• Air Seal: EPDM feeds must be installed with OEM firewall seal modifications (cut section supplied).
• Serviceability: Gen2 dry filters are serviceable with backflush/air blow; no oil required.

Summary of Hard Engineering Outcomes

• ~+16% airflow volume capacity vs stock.
• Measured dyno gains: ~+18–+25 hp & ~+15–+18 ft‑lb.
• IAT reduction path and reduced pressure drop.
• Laminar flow preservation through carbon Venturi housings and minimal direction change.
